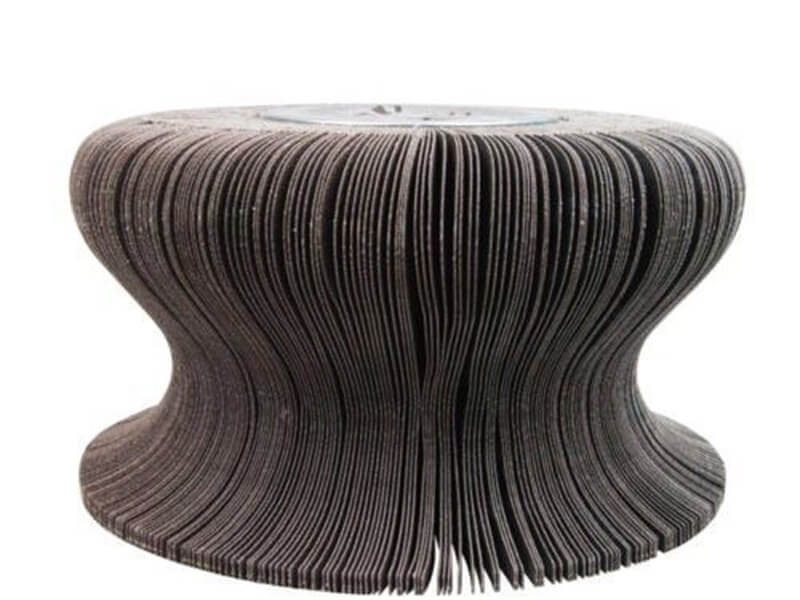

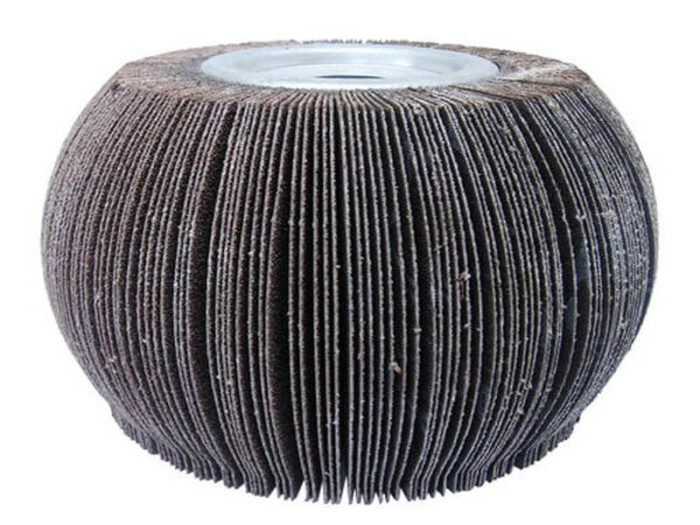

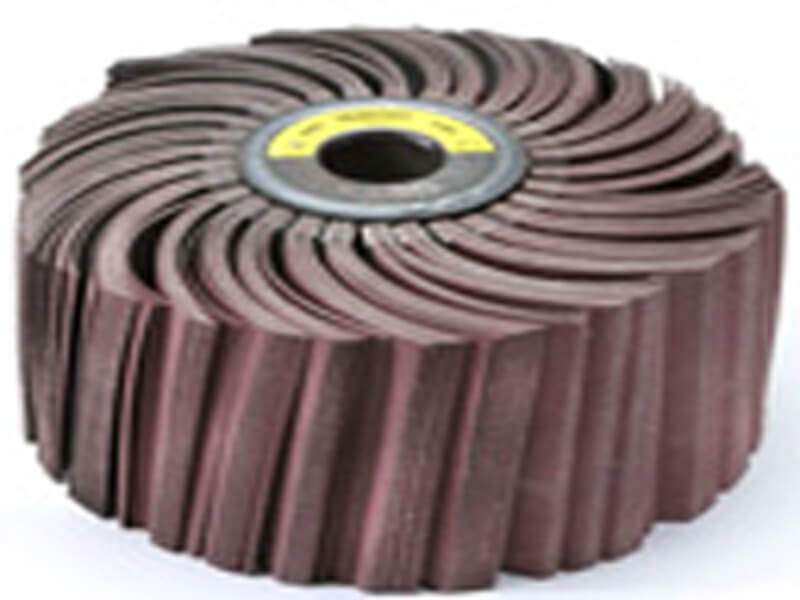

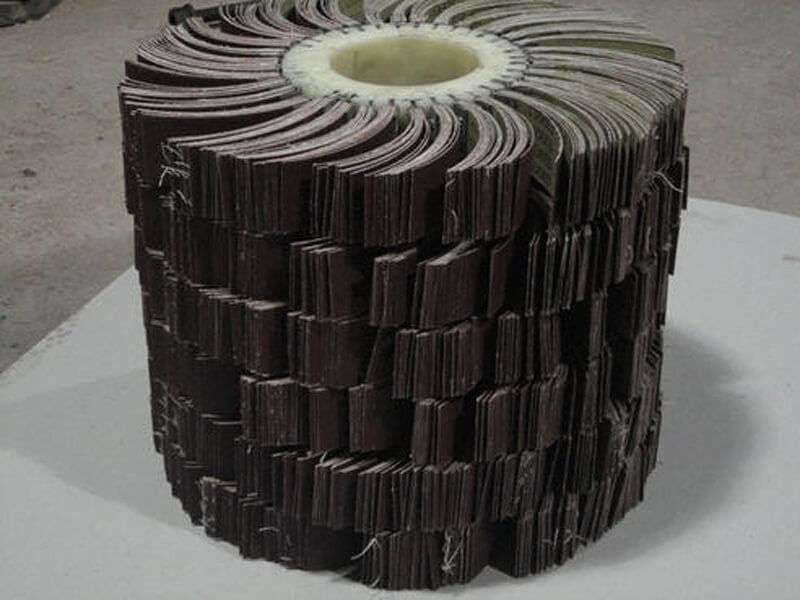

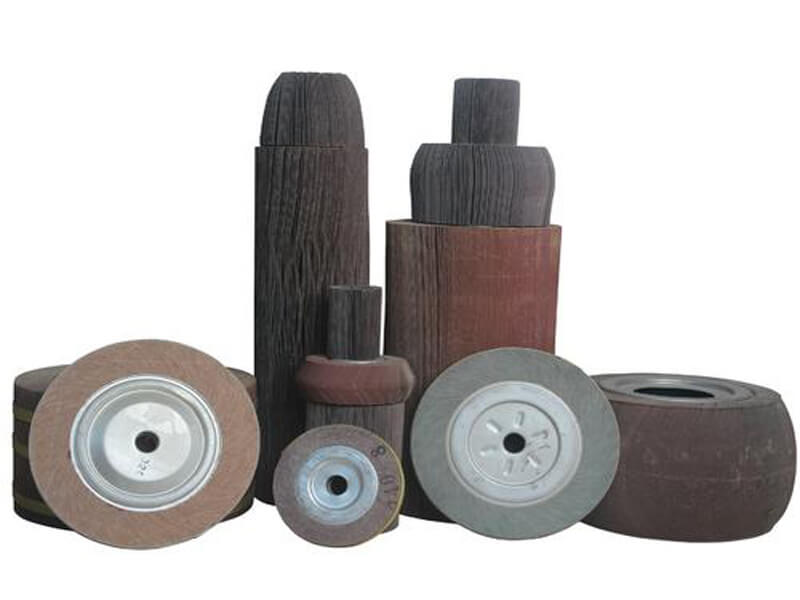

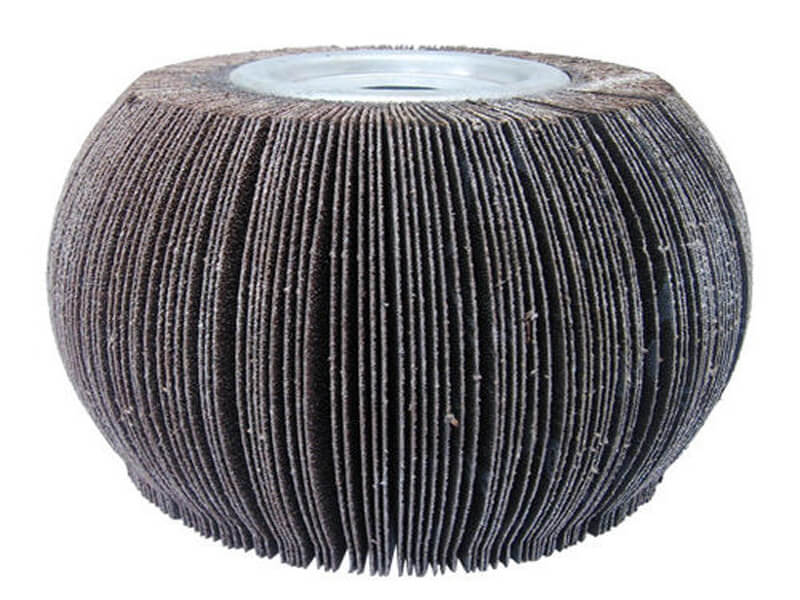

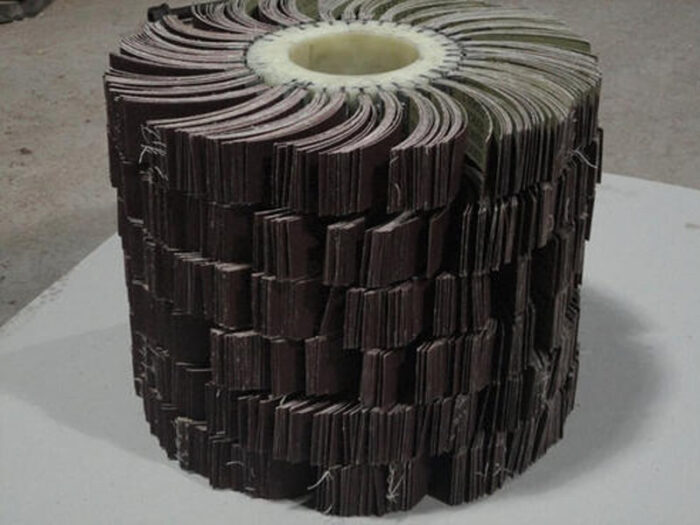

Customerized Shape Flap Drum

 Advantages

• Highly flexible, enabling optimal adjustment to the contour.
• Consistently high stock removal rate over the entire tool life as new, aggressive abrasive is constantly exposed.

 Recommendations for use

• Reducing the contact pressure and the peripheral speed and adding grinding oil diminishes tool wear and thermal load on the workpiece.
• To increase the stock removal rate, it is advisable to use a coarser type of grit instead of increasing the contact pressure. This will prevent unnecessary tool wear and thermal load on the workpiece.
• The increase in cutting speed leads to a slightly finer surface quality. Increasing the contact pressure makes the surface slightly coarser. The softer the material that is being worked on, the coarser the surface (when using the same grit size).
• For the best results, use at a recommended cutting speed of 15-30 m/s.
• Use grinding oil that is suitable for the material in order to significantly increase the tool life and the abrasive performance of the tools.
• For the best results, use a tool drive with an output of 1,000–1,500 watts.

 Ordering notes

• The 19 mm hole diameter with 4 keyways fits all conventional drum grinders.

 Safety notes

• For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
• The contact pressure must be significantly reduced if the specified optimum rotational speed is exceeded.
• The maximum permitted peripheral speed is 32 m/s.

 Materials that can be worked

• Aluminium
• Annealed cast iron
• Brass
• Cast steel
• Copper
• Grey/nodular cast iron (GG/GJL, GGG/GJS)
• Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC) Steel materials with a hardness > 54 HRC
• Steels up to 1,200 N/mm² (< 38 HRC)

  Applications

• Deburring
• Leveling
• Step-by-step fine grinding
• Structuring (matt finishing, brush matting and satin finishing)
• Surface work
• Work on weld seams

 Drive types

• Drum grinders

Instructions for use:

1,Before the use of various products, need to check the degree of use of the product, in order to better fit the tool and workpiece.

2,Please make sure that the product is made of the correct material and the correct grain number before use, so as to avoid excessive wear on the workpiece.

3,If the product is to be used with a machine tool, please make sure the product is fixed correctly with the machine before starting the machine to test and use it.

4,Please make sure the storage environment of the product is dry and ventilated, and try not to stack and squeeze for better storage.

5,After using the products, please stack them in a unified way for better management of materials.

After-sales service

• Visit customers from time to time and deal with the situation in time.
• Understand the customer’s needs and help to solve certain related problems.
• Ensure the applicability of the products, in order to provide accurate product supply.
• In case of quality problems, please provide pictures and detailed descriptions.
• If the quality of the product is determined to be problematic, provide replacement services.

Why choose us?

Shanghai Jingjun Grinding, provides high quality materials and machinery, genuine imported raw materials. We process and produce the required sizes for our customers, with fast and standardized production processes.

Quality and quantity guaranteed for customers, wide range of grinding needs, special customization of abrasives, all to make grinding more efficient premise, abrasives and abrasives fit.

The fit of the abrasive to the tool makes the tool easier to handle. The fit of the abrasive to the workpiece, from rough grinding to fine grinding to polishing, one-stop supply of abrasives to grinding tools to machine tools.

Based on the principle of cost-effective, not high price, we will be a loyal ally of our customers and a reliable manufacturer and processor of grinding consumables.

Precautions

1, the supply of imported products, are genuine imported materials, or imported raw materials. The same style part of the product can be divided into imported materials and domestic materials, please specify the required inquiry.

2, the site does not provide a unit price, all products according to demand, materials, technology and other factors, prices vary. Later will be provided in the form of quotations or contracts, etc. For details, please call / WeChat customer service advice.

3, my company provides grinding materials, grinding machine, grinding solutions one-stop service, details can be viewed in other categories or contact us for details, can provide product customization, grinding samples.

4, Main project of our company, grinding, polishing, drawing, deburring, de-welding and other processes abrasives and machine tools. When you contact us, please specify the name, size and quantity of the products you need. In order to provide you with detailed parameters in detail.
