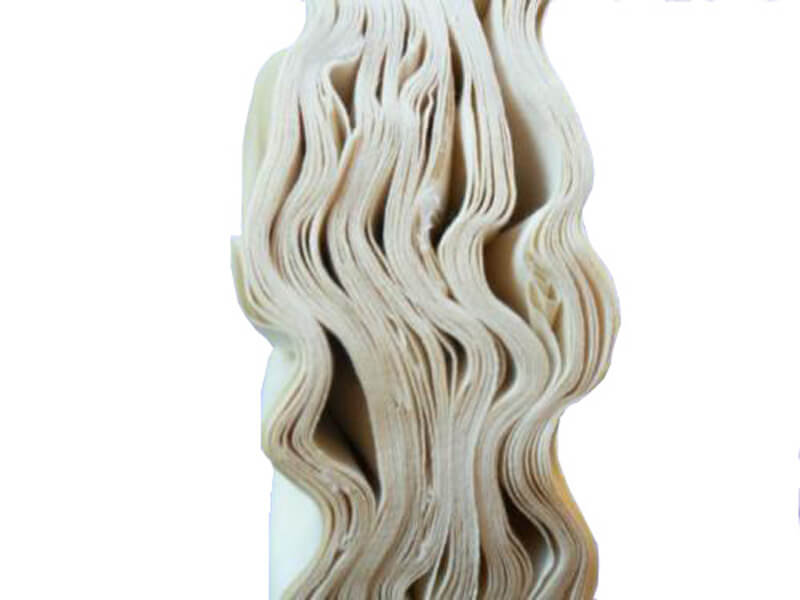

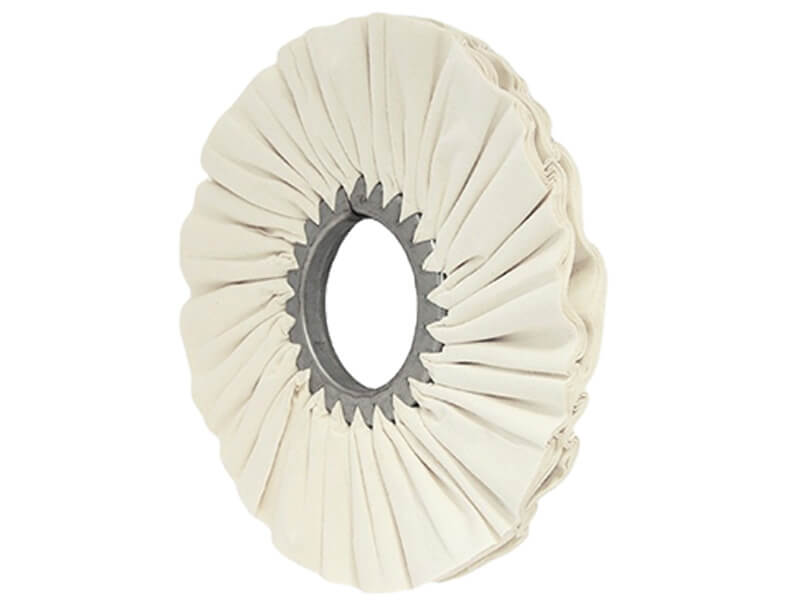

Cloth rings with hole is made of special loaded cotton cloth, with small interlayer added between the cloth layer and the cloth layer, so pressed together by the gear iron claw. The cloth wheel is rolled into a 45° angle strip of cloth and sewn into a continuous biased roll. The cloth rolls are then mounted on the center disk with grooves to form a wrinkled shape.

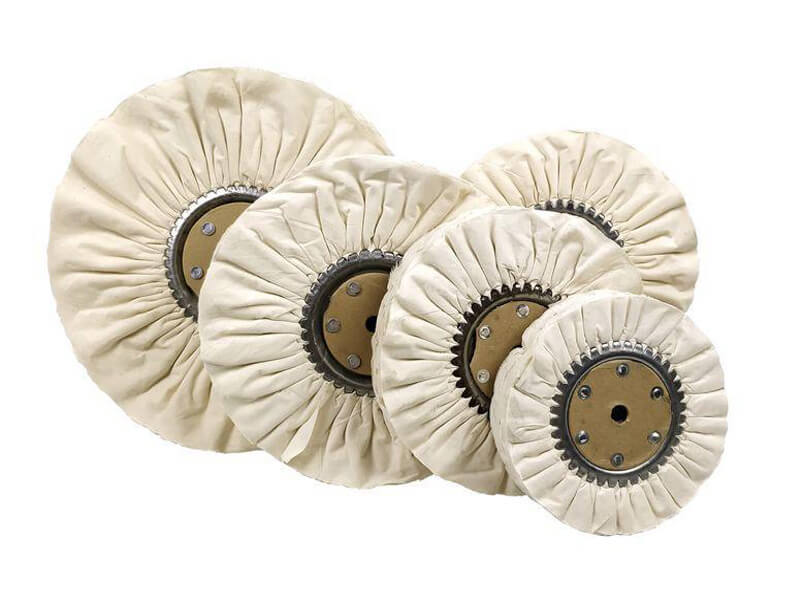

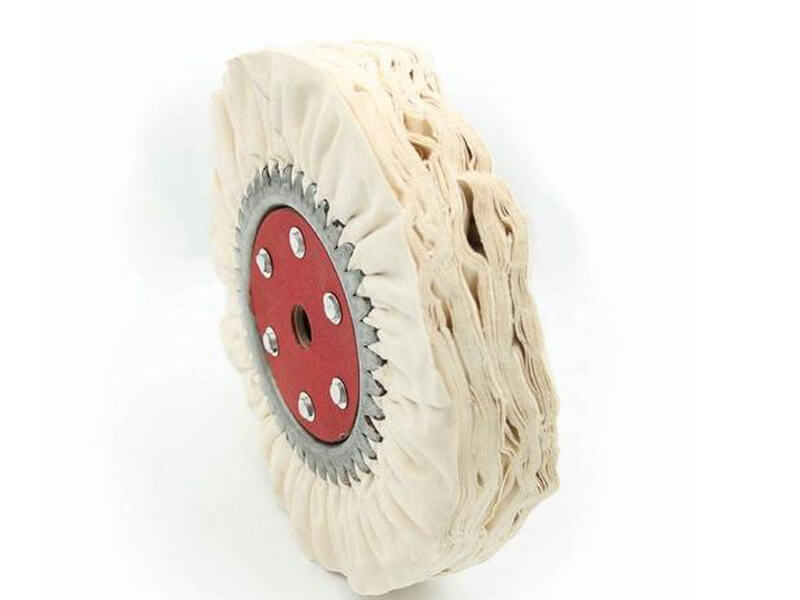

Cloth rings with hole
Description
| designation | parameters |
|---|---|
| Product Dimensions: | Diameter 200~350mm*Thickness Customized |
| Base material: | cotton |
| Packaging specifications: | customizable |
| Material quality: | Imported/domestic |
Cloth rings are used for pre-polishing and high-gloss polishing with polishing pastes.
If the intention is to achieve very smooth surface finishes, use several or even all variants successively.
ST (sisal cloth) version for coarse pre-polishing.
Technical information
- cloth ring TR sisal dia. 80x10mm centre hole dia. 10mm for coarse pre-polishing with polishing paste
- External80 mm
- Hole 10 mm
- RPM, max.7500 RPM
- RPM, optimum2500 RPM
- VersionST
- Width10 mm
- Packaging unit5 pieces
Advantages
- Highly flexible, enabling optimal adjustment to the contour.
- Can be profiled as desired, meaning they can also be used for tools with complex geometries.
Recommendations for use
- Pre-polishing of steel and INOX: Cloth rings ST with polishing paste PP 1 VP STEELOX.
- Pre-polishing of aluminium and brass: Cloth rings ST with polishing paste PP 2 VP ALU.
- Pre-polishing of non-ferrous metals: Cloth rings ST with polishing paste PP 3 VP NON-FERROUS.
- Version ST cloth rings achieve their best performance at a recommended cutting speed of 10–15 m/s.
Ordering notes
- Please order arbor separately.
Materials that can be worked
- Aluminium
- Brass
- Bronze
- Cast steel
- Cobalt-based alloys
- Copper
- Fibre-reinforced thermosetting plastics (GRP, CRP)
- Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
- Nickel-based alloys (e.g. Inconell and Hastelloy)
- Stainless steel (INOX)
- Steel materials with a hardness > 54 HRC
- Steels up to 1,200 N/mm² (< 38 HRC)
- Thermoplastics
- Titanium
- Titanium alloys
Applications
- Polishing
Drive types
- Drive spindle
- Flexible shaft drive
- Straight grinder
Instructions for use:
1,Before the use of various products, need to check the degree of use of the product, in order to better fit the tool and workpiece.
2,Please make sure that the product is made of the correct material and the correct grain number before use, so as to avoid excessive wear on the workpiece.
3,If the product is to be used with machine tools, please make sure that the product is fixed correctly with the machine before starting the machine for testing and use.
4,Please make sure the storage environment of the product is dry and ventilated, and try not to stack and squeeze for better storage.
5,After using the products, please stack them in a unified way for better management of materials.
After-sales service
- Visit customers from time to time and deal with the situation in time.
- Understand the customer’s needs and help to solve certain related problems.
- Ensure the applicability of the products, in order to provide accurate product supply.
- In case of quality problems, please provide pictures and detailed descriptions.
- If the quality of the product is determined to be problematic, provide replacement services.
Why choose us?
Shanghai Jingjun Grinding, provides high quality materials and machinery, genuine imported raw materials. We process and produce the required sizes for our customers, with fast and standardized production processes.
Quality and quantity guaranteed for customers, wide range of grinding needs, special customization of abrasives, all to make grinding more efficient premise, abrasives and abrasives fit.
The fit of the abrasive to the tool makes the tool easier to handle. The fit of the abrasive to the workpiece, from rough grinding to fine grinding to polishing, one-stop supply of abrasives to grinding tools to machine tools.
Based on the principle of cost-effective, not high price, we will become a loyal ally of our customers and make them feel at ease with the production and processing of grinding consumables.
Precautions
1, the supply of imported products, are genuine imported materials, or imported raw materials. The same style part of the product can be divided into imported materials and domestic materials, please specify the required inquiry.
2, the site does not provide a unit price, all products according to demand, materials, technology and other factors, prices vary. Later will be provided in the form of quotations or contracts, etc. For details, please call / WeChat customer service advice.
3, my company provides grinding materials, grinding machine, grinding solutions one-stop service, details can be viewed in other categories or contact us for details, can provide product customization, grinding samples.
4,Main project of our company, grinding, polishing, drawing, deburring, de-welding and other processes abrasives and machine tools. When contacting us, please specify the name, size and quantity of the products you need. In order to provide you with detailed parameters in detail.
